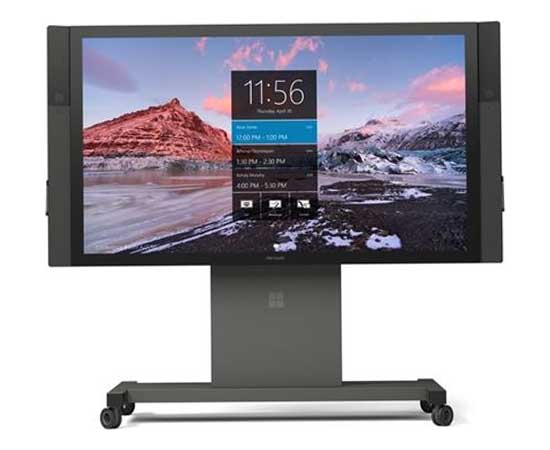

Microsoft Surface Hub V1 84"

Display

• Screen dimensions: - 84" (1171.5mm x 2202.9mm x 105.4mm)
• Weight of the unit: - 84" model: 280lbs (ca. 127 kg)
• Color: Black
• Resolution: - 85"-model: 3840 x 2160 px
• Aspect ratio: 16:9
• Touch: 100 point multitouch

System

• RAM and storage: 128 GB SSD, 8 GB RAM
• Operating system: Windows
• 84" model: 4th generation Intel® Core™ i7 with Nvidia Quadro K2200 GPU

Network

• Wi-Fi (802.11 a/b/g/n/ac)
• Ethernet 1Gbps
• Bluetooth 4.0 low energy
• NFC Reader
• Miracast compatible

Cameras

• dual 1080p cameras in the front (100 degree horizontal field of view)

Audio

• 4 element array-microphone, duale Stereo Speakers vorne

Connections

• 84" Model: (1) USB 3.0, (4) USB 2.0, Ethernet 1Gbps, DisplayPort Out, 3.5mm Stereo Out, RS232 Serial (RJ11). DisplayPort In, HDMI In, VGA In, 3.5mm Stereo In, (2) USB 2.0 type B.

Packaging

• 2x Surface Hub Pen
• Microsoft All-In-One Media Keyboard
• Power cord

Preinstalled

• Windows 10
• Microsoft Office

Microsoft Surface Hub is a videoconferencing system, interactive whiteboard, projector and presentation PC. It combines a large screen with built-in PC computer, two 1080p cameras, an array of four microphones and powered stereo speakers in one unit. Dedicated versions of Microsoft Office, OneNote Whiteboard and Skype for Business software were specifically developed for the Surface Hub.

Up to three people can work write, draw and interact with the screen, run universal Windows apps or wirelessly connect applications on the laptop, tablet or smartphone, work together as a group and also include remote participants on a Surface Hub via video.

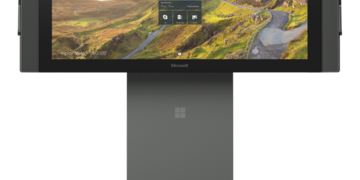

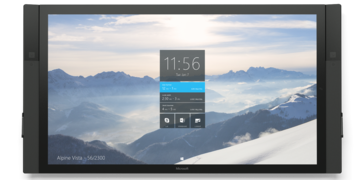

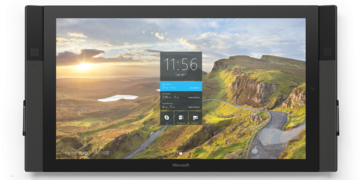

Microsoft Surface Hub is available as a 84" version with 4K resolution (3840x2160p) and Intel Core i7 processor, as well as a smaller 55" version (1920x1080p Full HD, Intel Core i5). Both versions are equipped with 8GB of RAM, a 128GB SSD hard drive for the bundled Windows 10 operating system, two rechargeable Surface Hub pens and with USB, HDMI, DisplayPort, Gigabit Ethernet, WiFi, Bluetooth, NFC and Miracast connectivity.
